Germany OBO surge arresters_Surge arrester / surge controller V25-B+C/FS-SU、V20-C/FS-SU

Product No：Pro2009416163735
Product Model：V25-B+C/FS-SU、V20-C/FS-SU
UpdateTime：2010.06.03
Views：1978

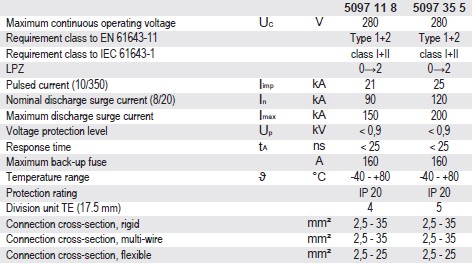

V 25-B+C/...: Combination arrester set, lightning and surge arrester Type 1+2 to VDE 0675 part 6-
11 (DIN EN 61643-11)
Complete unit consisting of upper part and base, pre-mounted and ready for connection
Suitable for TN network systems
With voltage monitoring of phases and function monitoring of arrester upper part, remote
signalling
Plug-in arrester with dynamic separating device
Visual function display
Voltage protection level < 0,9 kV
Enclosed, non-extinguishing zinc varistor arrester for use in normal commercial distributor
housings
Marked connections
Application example: building with an overhead power line supply or lightning protection system,
for building up lightning protection equipotential bonding.





Upper part and base pre-mounted and ready for connection, with voltage monitoring.

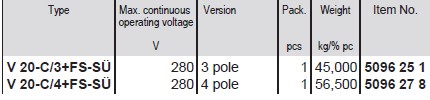

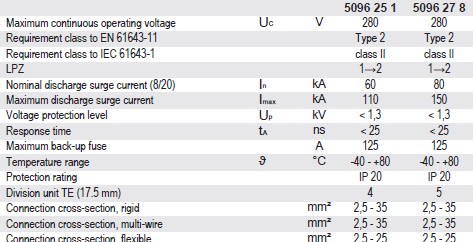

V 20-C/...: Surge protection device Type 2 (Class C) to VDE 0675 part 6-11 (DIN EN 61643-11),
ready-for-connection with remote signalling and voltage monitoring.
Complete unit consisting of upper part and base, pre-mounted and ready for connection
VDE-tested
Suitable for TN network systems
With voltage monitoring of phases and function monitoring of arrester upper part, remote
signalling
Plug-in upper part; upper part can be separated from base without tools
Including thermal and dynamic separating device
With visual display of defects
High current conductivity and long service life



Details：


 V25-B+C_FS-SU.pdf
