Satelit + lightning conductor
Product No：Pro2009415134326
Product Model：ESE2500,ESE4000,ESE5000,ESE6000
UpdateTime：2010.06.03
Views：5703
Among the most popular products in the SATELIT range, the ESE SATELIT+ is installed on numerous exposed sites around the world.
Its robust design makes the SATELIT+ the ideal lightning conductor for installations in extreme climatic conditions.
The SATELIT+ has been tested in accordance with the procedure described in the standard NF C 17-102.
"satelit" "Satellite" Introduction
France Konare - Mason Company "satelit" "satellite" card ahead of discharge lightning rod is the world’s leading mine-quality products, the product meets the International Electrotechnical (IEC) mine norms, the People’s Republic of China national standard GB50057-94 "construction Of mine design specifications. " In China to use more than 2 million units installed, mine-effective measures.
France Konare - Mason (DUYAL-MESSIEN) is established in 1835 by Konare and the establishment of the 1927 merger of the two companies Mason, now the world’s leader in the mine professional firms, the main products are "Satelit + "(Satellite) licences early discharge lightning rod. Company to science and technology research for the pilot, the French production early discharge lightning rod one of the major manufacturers. IEC is the French Federation (VTECommission) members, is to develop a new international standard of authority - the International Electrotechnical Commission (IEC) a member of the French.
Mine companies directly under the protection of all the products ensure compliance with the most stringent standards of mine - NFC17-102 standards.
Its products in Europe and Southeast Asia enjoy high reputation. France "satellite" card ahead of discharge lightning rod with the People’s Republic of national standards GB50057-94 "Lightning building design specifications."
When a thunderstorm cloud, the cloud and ground between an electric field (the atmosphere), the electric field strength can be achieved 5 kV / m. So that uplift of the ground or metal components began to appear on the corona discharge.
When the lightning cloud formation within a downlink pilot, the Lightning started to electric shocks. Downlink charge to the pilot ladder to the ground mobile form. Downlink pilot carrying the charge to set up a ground electric field.
From the ground on the building or object produced a pilot of the uplink. This has been spread upward pilot uplink and downlink to join the pilot. At this point, lightning current will flow through the channel formed. The other buildings on the ground may generate up several pilot. Downlink and the first pilot to join the pilot decided to up the shock of the lightning location. "Satellite" card ahead of the discharge lightning rod produce a working principle is faster than regular lightning rod up the pilot.
Note: This note describes only negative to the downlink Lightning electric shocks, it is electric - the only geometric model application examples. So far, the Lightning is the most frequent shocks of the。
Satellite early discharge lightning rod features
●superior performance
1, in the same conditions (height), "Satelit +" than ordinary lightning rod to protect the area
2, with mine more accurate, reducing the lightning-point in the non-lightning rod of probability.
● safe and reliable: no radioactive elements, stainless steel, corrosion-resistant, strong wind resistance.
● maintenance-free: passive, no electricity, no energy-consuming devices.
● installation simple: light weight, without the installation of coaxial cable shielding.
● handsome in appearance
“satelit+”Satellite lightning rod ESE2500
In China to install "satelit +" lightning rod People’s Republic of China must strictly abide by national standards - "Building mine design specifications" (GB50057-94) the mandatory provisions:
1, according to the size of protected buildings, height, location and the number of days lightning correction coefficient geographical environment, building use, such as determining the nature of the building mine category.
2, by building the mine type and size, choose one or several identified with "satellite" lightning rod.
3, Yin Xiaxian with the main buildings of reinforced electrical link, or as required to do two or two above Yinxia Xian.
4, Yin Xiaxian should be disconnected cards and the protective insulation to the surface.
5, grounding body, grounding resistance should be GB50057-94 called for the implementation.
Product warranty period of 20 years.
Satellite lightning rod test certificate
By the French National Professional Committee, Konare - Mason "satelit +" early discharge lightning rod at the national professional committee under the supervision of technical appraisal by COFRAC, the laboratory for national professional committee appointed by the EDF Les Renardieres high-pressure physics laboratory and high-pressure Merlin Gerin Centre, the French industrial electronics Centre laboratory LCIE certificate. Test certificates that "satelit +" with NFC17-102, the world’s leading status.satelit + "(satellite) licences early discharge lightning rod
Model and the protection of radius Model early discharge time △ T
| Lightning models | Discharge time in advance△T |
| ESE2500避雷针 | 25 microseconds |
| ESE4000避雷针 | 40 microseconds |
| ESE5000避雷针 | 50 microseconds |
| ESE6000避雷针 | 60 microseconds |

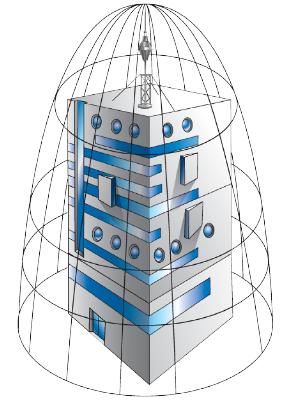

Different models of different mounting height of the "satelit +" lightning rod Building on the protection of all types of mine-radius (Rp)
| PROTECTION RADIUS (m) | |||||||||
| Types of SATELIT+ | |||||||||
| 2 | 4 | 5 | 7 | 10 | 15 | 20 | 45 | 60 | |
| PROTECTION LEVEL 1 | |||||||||
| ESE 1000 | 10 | 20 | 26 | 27 | 28 | 30 | 30 | - | - |
| ESE 2500 | 17 | 34 | 42 | 43 | 44 | 45 | 45 | - | - |
| ESE 4000 | 24 | 46 | 58 | 59 | 59 | 60 | 60 | - | - |
| ESE 5000 | 28 | 55 | 68 | 69 | 69 | 70 | 70 | - | - |
| ESE 6000 | 32 | 64 | 79 | 79 | 79 | 80 | 80 | - | - |
| PROTECTION LEVEL 2 | |||||||||
| ESE 1000 | 18 | 37 | 43 | 46 | 49 | 54 | 57 | 68 | 70 |
| ESE 2500 | 26 | 52 | 65 | 66 | 69 | 72 | 75 | 84 | 85 |
| ESE 4000 | 33 | 66 | 84 | 85 | 87 | 89 | 92 | 99 | 100 |
| ESE 5000 | 38 | 76 | 95 | 96 | 98 | 100 | 102 | 110 | 110 |
| ESE 6000 | 44 | 87 | 107 | 108 | 109 | 111 | 113 | 120 | 120 |
| PROTECTION LEVEL 3 | |||||||||
| ESE 1000 | 18 | 37 | 43 | 46 | 49 | 54 | 57 | 68 | 70 |
| ESE 2500 | 26 | 52 | 65 | 66 | 69 | 72 | 75 | 84 | 85 |
| ESE 4000 | 33 | 66 | 84 | 85 | 87 | 89 | 92 | 99 | 100 |
| ESE 5000 | 38 | 76 | 95 | 96 | 98 | 100 | 102 | 110 | 110 |
| ESE 6000 | 44 | 87 | 107 | 108 | 109 | 111 | 113 | 120 | 120 |
The assembly method
1, "satelit +" lightning rod from A, B, C, D composed of four parts.
2, removed from the package after all components installed in the following order:
1) accessories used in the hexagonal wrenches screw loose screws pulse generator at the bottom of the two C
Screwdriver.
2) won the top of the pulse generator discharge of the three sets of advanced X, in particular, to adjust the X
The distance between the two needle, not the two-phase grounding, spacing 1 ~ 2 mm.
3) the lightning rod-D icon on the direction through the C, B in the top of the head port.
4) A and D sharp lightning rod sets tight, with two wrenches and forced tightened.
5) a wrench in the hexagonal screws tighten two screws at the bottom of the C, B and C at this time between
3 column should be expected to withstand, on the whole firm.
6) the needle at the bottom of the Screw processed lightning rod on the stent.
Material and size (shown below)
To cutting-edge flash: 20 mm in diameter stainless steel
Induction discharge of: stainless steel materials
Weight: less than 5 kg
