FURSE_Lightning signal devices ESP_ESP TN/JP、ESP TN/RJ11-2/6、ESP TN/RJ11-4/6、ESP TN/RJ11-6/6、ESP ISDN/RJ45-4/8、ESP ISDN/RJ45-8/8
Product No：Pro2009414153911
Product Model：ESP TN/JP、ESP TN/RJ11-2/6、ESP TN/RJ11-4/6、ESP TN/RJ11-6
UpdateTime：2010.06.03
Views：1503
Suitable for use on telephone lines with a maximum (or ringing) voltage of up to 190 volts.
For telephone lines with a British style, jack plug and socket, connection use ESP TN/JP. For telephone lines with RJ11 connections protect the middle 2 (of 6) conductors with ESP TN/RJ11-2/6, the middle 4 (of 6) with ESP TN/RJ11-4/6 or all 6 with ESP TN/RJ11-6/6.For wire-in applications the high performance ESP TN or ready-boxed derivative ESP TN/BX or ESP TN/2BX, can be used. To protect PBX telephone exchanges and other equipment with LSA-PLUS connections .
Application
Use these to protect equipment plugged into a telephone or ISDN socket:
computers and computer modems faxes, phones and answer machines dial-up fire/burglar alarms telemetry equipment.
Features and benefits
Controls transient overvoltages to a low level to ensure maximum protection for your equipment. Provides repeated protection in lightning intense environments. ESP TN/JP and ESP TN/RJ11-6/6 give protection between all six conductors, so whichever wires your system communicates through you can be sure your equipment is fully protected. ESP ISDN/RJ45-8/8 gives protection between ll 8 conductors, fully protecting attached equipment no matter which wires the system uses. Correctly applied, ESP TN/RJ11-2/6, ESP TN/RJ11-4/6 and ESP ISDN/RJ45-4/8 protect all signalling conductors. Supplied ready for flat mounting. Sturdy ABS housing. Simple installation. Substantial earth stud to enable effective earthing. Straightforward and comprehensive installation instructions with every unit. UK Oftel Approval NS/G/1235/W/100025 5 year warranty.
Installation

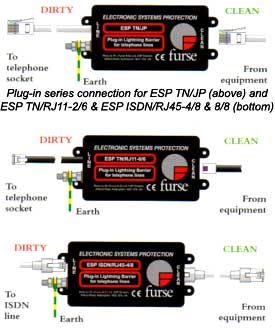

Connect in series with the telephone line or ISDN line. These units are usually installed close to the equipment being protected and within a short distance of a good electrical earth.
Electrical specification
| ESP TN/JP | ESP TN/RJ11-2/6 | ESP TN/RJ11-4/6 | ESP TN/RJ11-6/6 | ESP ISDN/RJ45-4/8 | ESP ISDN/RJ45-8/8 | |
| Max working voltage1 -Line to line -Line to earth |
190V 190V |
190V 190V |
190V 190V |
190V 190V |
5V 58V |
5V/58V2 58V2 |
| Current rating (signal) | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA |
| In-line resistance (per line ± 10%) |
4.4ohm | 4.4ohm | 4.4ohm | 4.4ohm | 4.4ohm | 4.4ohm |
| Bandwidth (-3dB 50ohm system) |
>50MHz | >50MHz | >50MHz | >50MHz | >50MHz | >50MHz |
1 Maximum working voltage (DC or AC peak) measured at <95μA leakage. Post transient recovery voltage >80V.
Transient specification
| ESP TN/JP | ESP TN/RJ11-2/6 | ESP TN/RJ11-4/6 | ESP TN/RJ11-6/6 | ESP ISDN/RJ45-4/8 | ESP ISDN/RJ45-8/8 | |
| Let through voltage (all conductors)1 5kV,10/700μs test to: BS 6651:1999 Appendix C, Cat C-High ITU (formerly CCITT) IX K17 -Line to line -Earth to earth |
200V 200V |
200V 200V |
200V 200V |
200V 200V |
27V 80V |
27V/80V2 80V |
| Maximum surge current | 10kA | 10kA | 10kA | 10kA | 10kA | 10kA |
1 The maximum transient voltage let-through the protector throughout the test (+/-10%), line to line & line to earth. Response time <10ns.
2 Tested with 8/20μs waveshape to ITU (formely CCITT), BS 6651:1999 Appendix C.The connectors may limit the capability of the protector.
Mechanical specification
| ESP TN/JP | ESP TN/RJ11-2/6 | ESP TN/RJ11-4/6 | ESP TN/RJ11-6/6 | ESP ISDN/RJ45-4/8 | ESP ISDN/RJ45-8/8 | |
| Temperature range | -25°C to +70°C | -25°C to +70°C | -25°C to +70°C | -25°C to +70°C | -25°C to +70°C | -25°C to +70°C |
| Connection type | Standard BT jack plug and socket (to BS 6312) | RJ11 plug and socket | RJ11 plug and socket | RJ11 plug and socket | RJ45 plug and socket | RJ45 plug and socket |
| Earth connection | M6 stud | M6 stud | M6 stud | M6 stud | M6 stud | M6 stud |
| Weight -unit -packaged |
0.15kg 0.2kg |
0.15kg 0.2kg |
0.15kg 0.2kg |
0.15kg 0.2kg |
0.15kg 0.2kg |
0.15kg 0.2kg |
| Dimensions |  | |||||
Download：
ESPTN-JP_RJ.pdf
