British MTL Surge Protector_Data and Signal Protection_SLP 07D、SLP 16D、SLP 32D

Product No：Pro200942783825
Product Model：SLP 07D、SLP 16D、SLP 32D
UpdateTime：
Views：1694

Details：


The SLP is an ultra-slim surge protection device for use in protecting electronic equipment and process systems connected to signal and I/O cabling. Models are available to protect a wide range of high-speed signal and I/O interface applications.

Specifi cations

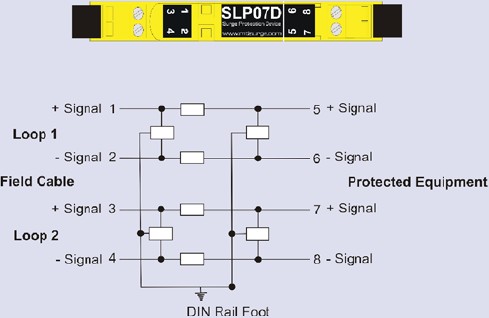

� Surge protection for two loops per SLP (or one 4-wire circuit)
􀁏 Range of ATEX Certifi ed intrinsically safe surge protectors
􀁏 Space-saving design; easy installation
􀁏 Multi-stage hybrid protection circuitry — 20kA maximum surge current
􀁏 Range of voltage ratings — to suit all process I/O applications
􀁏 Designed for high bandwidth, low resistance applications
􀁏 10 year product warranty

Maximum surge current

20kA (8/20μs waveform) per line
Leakage current
<1mA @ working voltage
Maximum rated load current
1.50A
Loop resistance
2 Ohm
Capacitance
Line - Line - 60pF
Bandwidth
-0.1db @9kHz - 37MHz
-3dB @50MHz

Response time
<1ns
Ambient temperature
–40°C to +80°C (working)
–40°F to +176°F (working)
–40°C to +80°C (storage)
–40°F to +176°F (storage)
Humidity
5 to 95% RH (non-condensing)
Terminals
2.5mm2 (12 AWG)
Electrical connections
Plug/header screw terminal strip

Mounting
T-section DIN-rail (35 x 15mm rail)
Weight
5oz (140g approximately)
Case fl ammability
UL94-V0
EMC compliance
BS EN 60950:1992
BS EN 61000-6-2:1999
BS EN 61010-1:1993
BS EN 61000-4-5:2006



Download：


 SLP.pdf
