Germany OBO surge arresters_LSA-A-LEI、LSA-T-LEI、LSA-E-LEI、LSA-B-MAG、LSA-BF-180、LSA-BF-24

Product No：Pro200941622190
Product Model：LSA-A-LEI、LSA-T-LEI、LSA-E-LEI、LSA-B-MAG、LSA-BF-180、LS
UpdateTime：
Views：1147

Details：


The LSA-Plus overvoltage protection is used in particular with multiwire conductor systems, such as those found for example in measuring, controlling and regulating technology and in telephone switching equipment. Ten double-core systems (DA) can be protected with just one overvoltage (basic protection) magazine LSA-B-MAG.
For the protection of two conductors - the modules LSA-BF are used. The basic and fine protection devices of Type LSA-BF (180 V version) are provided for use in switching equipment of analog and ISDN telephone networks.
OBO basic and fine protection devices LSA-BF-24 (24 V version) are used in particular in data and MSR technology.
The protective circuit of the LSA-Plus devices consists of powerful 3-pole overvoltage protection arrester. Basic and fine protection are based on fail-safe technology, which ensures that the overvoltage protector is bridged for thermal overload and therefore protected.



LSA-A-LEI: LSA attaching strip 2/10 for attaching ten double-cores.
• For use with protection element LSA-B-MAG
• Fastening to mounting trough LSA-M
• Colour: grey
• Clampable cross-sections 0.14-0.5 (AWG 26 to 20)



LSA-T-LEI: LSA separating strip 2/10 for attaching up to ten double-cores.
• For use with protection element LSA-BF-180, LSA-BF-24, LSA-B-MAG
• Fastening to mounting trough LSA-M
• Colour: white
• Clampable cross-sections 0.14-0.5 (AWG 26 to 20)



LSA-E-LEI: LSA earthing strip, 40-pin for attaching earth lines or screens to the earth connection.
• Complete with connection line, green-yellow, 1.5 mm²
• Colour: red

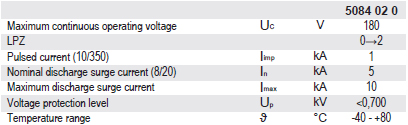

LSA-B-MAG: LSA basic protection magazine for use in multi-core data line
systems, measurement technology systems and telephone switchboards.
• Basic protection
• Fitted with 20 gas discharge protectors
• Max. voltage: 180 V

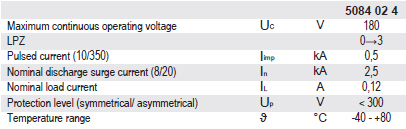

LSA-BF 180: LSA basis and fine protection, for application in measurement technology systems.
• Basic and fine protection
• Course protection using fail-safe technology
• With PTC protection components against overcurrent
• Max. voltage: 180 V

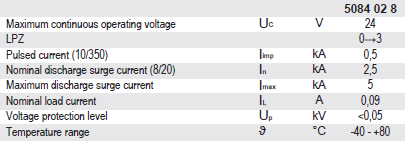

LSA-BF 24: LSA basis and fine protection, for application in measurement technology systems.
• Basic and fine protection
• Course protection using fail-safe technology
• With PTC protection components against overcurrent
• Max. voltage: 24 V



Details：


 LSA-PLUS.pdf
