Germany OBO surge arresters_Medium and fine protection FRD、FLD、TKS-B

Product No：Pro200941621255
Product Model：FRD、FLD、TKS-B
UpdateTime：
Views：1295

Details：


Lightning barriers TKS-B, FRD, FLD, FRD 2 and FLD 2 protect electronic measuring, controlling and regulating
systems from overvoltages.
TheTKS-B surge protector is used as a lightning arrester (LPZ 0 ->2) for data cables of all types (max. 110 V, 2MHz). Type FRD and FLD lighting barriers are designed for use in floating (asymmetrical, potential-free) doublecore systems. Version FRD can be employed in systems in which an increase in resistance is allowed. If an increase in resistance is not possible, Version FLD is used.

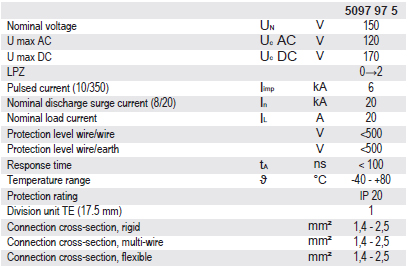

TKS-B: Overvoltage protection for use in measuring, control and regulation systems and also
telecommunication systems.
• Basic protection for lightning protection potential equalisation
• High impulse deflection capacity 6 kA (10/350)
• With installation-friendly, screwless connection clamps
• In a space-saving 17.5 mm grid
Application: universal use on 35 mm top-hat rails in any standard distributor housing.

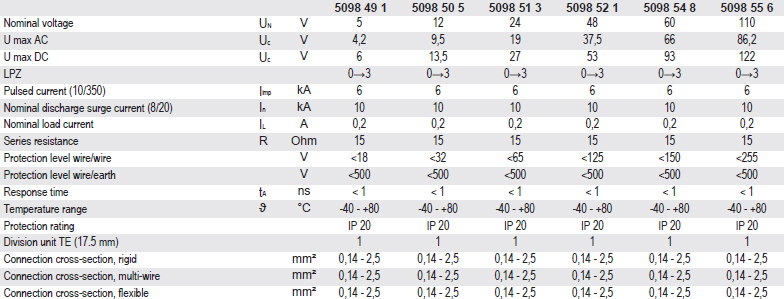

FRD...: Overvoltage protection for use in measuring, control and regulation systems.
• Medium and fine protection
• Standard design for double-core systems
• Two-stage protection circuit
• With installation-friendly, screwless connection clamps
• In a space-saving 17.5 mm grid
• With integrated end-coupling resistances in the longitudinal branch
Application: universal use on 35 mm top-hat rails in any standard distributor housing.

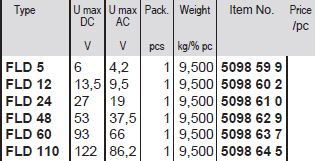

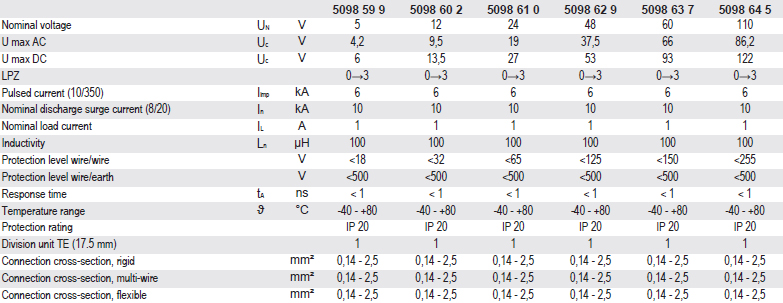

FLD...: Overvoltage protection for use in measuring, control and regulation systems.
• Medium and fine protection
• Standard design for double-core systems
• Two-stage protection circuit
• With installation-friendly, screwless connection clamps
• In a space-saving 17.5 mm grid
• With integrated end-coupling inductivities in the longitudinal branch
Application: universal use on 35 mm top-hat rails in any standard distributor housing.



Details：


 FRD.pdf
