Germany OBO surge arresters_Fine power protection / adapter with cold device connector CNS-D

Product No：Pro2009416172724
Product Model：CNS-D
UpdateTime：2010.06.03
Views：1411

The CNS…-D line protection device is an overvoltage protection device/fine surge network protection device, Type 3 (Class D) to DIN EN 61643-11 for the protection of consumers from transient overvoltages.

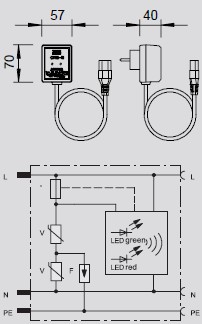

The integrated protection circuit, consisting of gas dischargers and varistors is continuously monitored via a temperature controller. In the arrester fails, the fault is signalled both audibly and visually. The mains voltage is maintained, even if the protection circuit fails.
The protection devices are used as adapters in the versions with cold device connectors or multi-way connector strip for connecting several terminals.



Length of connection conductor: 1.5 m
CNS-D: Surge protection device Type 3 (Class D) to VDE 0675 part 6-11 (DIN EN 61643-11),
intended for use in protective contact plugs.
VDE-tested
With visual and acoustic signalling, function display
With cold unit connector
Length of connection conductor: 1.5 m
Y-circuit for high electrical safety
Application: e.g. protection of PCs, printers, copiers, fax machines, etc.





Details：


 CNS_D.pdf
