Germany OBO surge arresters_Surge arrester / surge controller V25-B+C/FS、V20-C/FS

Product No：Pro2009416171632
Product Model：V25-B+C/FS、V20-C/FS
UpdateTime：2010.06.03
Views：4182

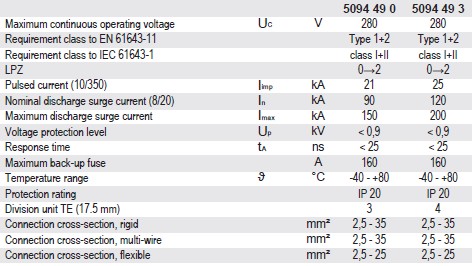

V 25-B+C/...: Combination arrester set, lightning and surge arrester Type 1+2 to DIN EN 61643-11
(B+C to VDE 0675 part 6)
With new MultiBase base part and Multi-connection clamps
Complete unit consisting of upper part and base, pre-mounted and ready for connection
Suitable for any TN network systems
With remote signalling, potential-free changeover contact, for function monitoring
Plug-in arrester with dynamic separating device
Visual function display
Voltage protection level < 0,9 kV
Enclosed, non-extinguishing zinc varistor arrester for use in normal commercial distributor
housings
Marked connections
-FS variant with remote signalling contact (potential-free NO contact)
Application example: building with an overhead power line supply or lightning protection system,
for building up lightning protection equipotential bonding.





Upper and lower part pre-mounted and ready for connection, with remote signalling.

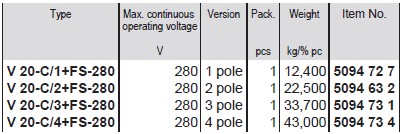

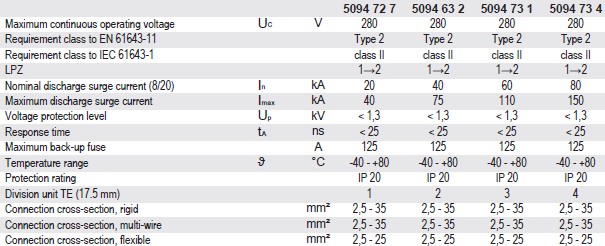

V 20-C/...: Surge protection device Type 2 Class C) to VDE 0675 part 6-11 (DIN EN 61643-11).
With new MultiBase base part and Multi-connection clamps
Complete unit consisting of upper part and base, pre-mounted and ready for connection
VDE-tested
Suitable for TN network systems
Plug-in upper part; upper part can be separated from base without tools
With remote signalling, potential-free changeover contact, for function monitoring
Including thermal and dynamic separating device
With visual display of defects
High current conductivity and long service life
Marked connections
Application example: residential buildings, single-family homes



Details：


 V25-B+C_FS.pdf
