Germany OBO surge arresters_Surge arrester / surge controller V25-B+C/AS、V20-C/AS

Product No：Pro200941617357
Product Model：V25-B+C/AS、V20-C/AS
UpdateTime：2010.06.03
Views：1764

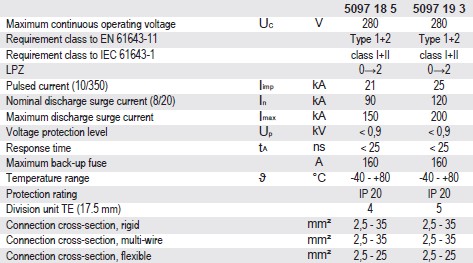

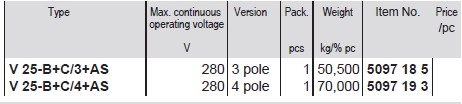

V 25-B+C/...: Combination arrester set, lightning and surge arrester Type 1+2 to VDE 0675 part 6-
11 (DIN EN 61643-11)
Complete unit consisting of upper part and base, pre-mounted and ready for connection
Suitable for TN network systems
With acoustic signalling for function monitoring, signal tone can be shut down with 24 h
repetition
Plug-in arrester with dynamic separating device
Visual function display
Voltage protection level < 0,9 kV
Enclosed, non-extinguishing zinc varistor arrester for use in normal commercial distributor
housings
Marked connections
Application example: building with an overhead power line supply or lightning protection system,
for building up lightning protection equipotential bonding.





Upper and lower part pre-mounted and ready for connection, with acoustic signalling

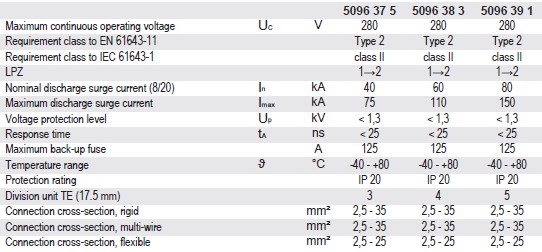

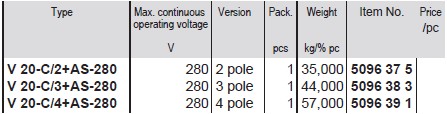

V 20-C/...: Surge protection device Type 2 (Class C) to VDE 0675 part 6-11 (DIN EN 61643-11)
with acoustic signalling.
Complete unit consisting of upper part and base, pre-mounted and ready for connection
VDE-tested
Suitable for TN network systems
With acoustic signalling for function monitoring, signal tone can be shut down for 24 h
Plug-in upper part; upper part can be separated from base without tools
Including thermal and dynamic separating device
With visual display of defects
High current conductivity and long service life
Marked connections
Application example: residential buildings, single-family homes



Details：


 V25-B+C_AS.pdf
