Germany OBO surge arresters_Decoupling inductivity LC 63

Product No：Pro2009416154418
Product Model：LC 63
UpdateTime：2010.06.03
Views：3516

The LightningCoordinator is a decoupling inductivity designed for the energy-based coordination of lightning arresters, Type 1 (Class B) and surge arresters Type 2 (Class C). If several protection devices are present in anetwork, a reciprocal influence may occur that necessitates energy-based coordination of parallel-connectedprotectors.
The coordinator ensures that the lightning arrester, Type 1 (Class B) reliably responds in the event of an overvoltage being caused by lightning. This discharges the high-energy pulsed current and protects the surge arrester Type 2 or 3 (Class C or D) from overload.

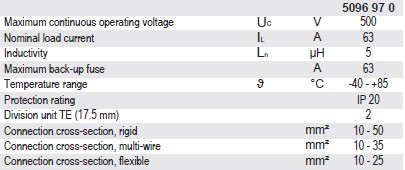

LC 63: Decoupling inductivity.
Compact design in a 35 mm housing
Two connection options for input and output
Nominal load current 63 A
Nominal inductivity 5 μH
Application example: in combination with MC 50-B VDE and V 20-C for line lengths of less than
5 m.



Details：


 LC_63.pdf
