FURSE_Lightning protection device FURSE_ESP 240/XXX
Product No：Pro2009415112437
Product Model：ESP 240/XXX
UpdateTime：
Views：1308
Details：

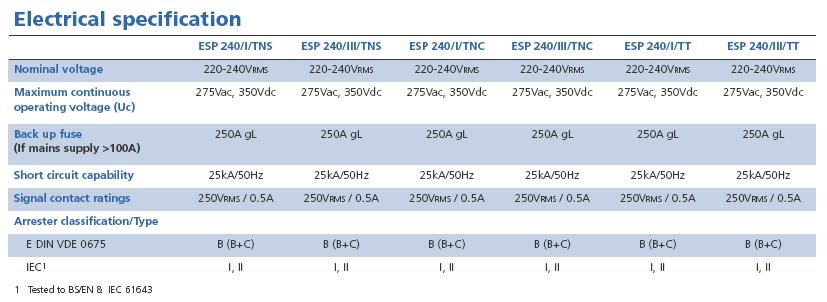

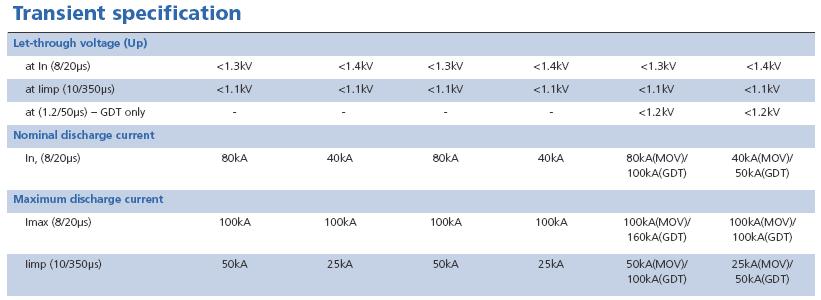

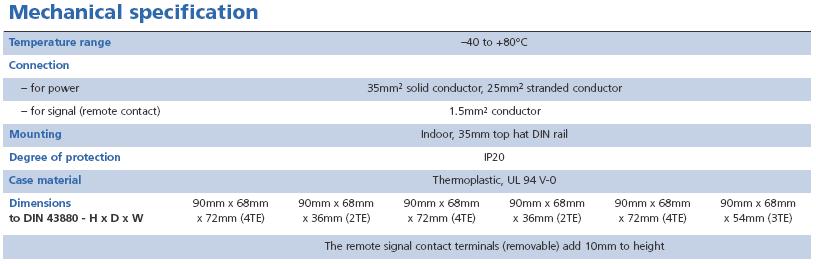

Specifications
● Type I/Class B protectors
● Imax of up to 100kA 8/20μs per mode (160kA 8/20μs for TT versions)
● Iimp of up to 50kA 10/350μs per mode (100kA 10/350μs for TT versions)
Application
● Use on single phase mains supplies and power distribution systems forprotection against partial direct or indirect lightning strikes
● ESP 240/I/XXX versions for use with Class I or II Lightning Protection
Systems (LPS)
● ESP 240/III/XXX versions for use with Class III or IV LPS; or exposedoverhead single phase power lines where no LPS is fitted
● ESP 240/X/TNS versions also cover TNC-S earthing systems
Installation
Protector to be installed in the main distribution panel with connectingleads of minimal length. The protector should be fused and is suitable for attachment to a 35mm top hat DIN rail.
Features and benefits
● Enhanced protection offering low let-through voltage (Up)
● The varistor based design eliminates the high follow current (If)associated with spark gap based surge protection
● Compact, space saving design
● Indicator shows when the protector requires replacement
● Remote signal contact can indicate the protectors status throughinterfacing with a building management system
Wiring diagrams
The diagrams below illustrate how to wire the appropriate ESP protector according to your chosen electrical system
Download：
ESP240_en.pdf
