防 雷 / 避 雷 产 品
ZoneGuardian系列
产品名称：ZoneGuardian系列
产品编号：Pro200962155329
产品型号：ZG42003、ZG43005、ZG43006
更新时间：2009.06.02
浏览次数：1363
详细说明：
规 格
所有的数字一般在77°F（ 25 ℃ ）除非另有说明
最大浪涌电流
64kA
负载电流
12 Amps
工作电压
125V
通过电压
230V
响应时间
Instantaneous

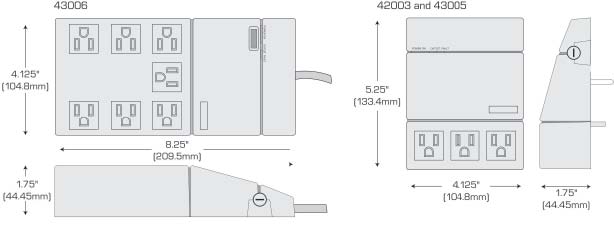

尺寸
| 模型 | 类型 | Outlets | 最大浪涌电流(kA) | 工作电压(V) | 通过电压(V) |
| ZG42003 | 交流插件 | 3 | 64 | 120 | 230 |
| ZG43005 | 交流电源地带 | 3 | 64 | 120 | 230 |
| ZG43006 | 交流电源地带 | 7 | 64 | 120 | 230 |
| 模块部分 # | 连接器类型 | 最大工作频率 (MHz) | 堆 电压(V) | 最大浪涌电流 (kA) | 应用程序 |
| CP24001 | RJ11 | N/A | 270 | 3 | Secondary 2-wire Dial-up |
| CP24003 | RJ11 | N/A | 105 | 3 | Secondary 4-wire Lease Line |
| CP24004 | Terminal strip | N/A | 105 | 3 | Secondary 4-wire Lease Line |
| CP24005 | RJ48S | >10 | 105 | 3 | Secondary 4-wire Digital Data Service |
| CP24006 | Terminal strip | >10 | 105 | 3 | Secondary 4-wire Digital Data Service |
| CP24009 | Terminal strip | 0.5 | 27 | 3 | Primary 4-wire RS232 |
| CP24010 | Terminal strip | 0.5 | 27 | 3 | Primary 5-wire RS233 |
| CP24011 | RJ45 | 0.5 | 27 | 3 | Primary 8-wire RS234 |
| CP24018 | Terminal strip | 50 | 10 | 10 | Primary 2-wire + G RS485 |
| CP24021 | BNC | 70 | 15 | 10 | Primary Coax, IBM 3270 / Video |
| CP24025 | RJ11 | N/A | 270 | 3 | Secondary 4-wire Dial-up |
| CP24028 | Terminal strip | 60 | 15 | 10 | Primary 4-wire + Shield RS422 BiPolar |
| CP24034 | BNC | >150 | 30 | 10 | Primary Coax 10Base-2 |
| CP24037 | BNC | 70 | 30 | 10 | Primary Coax Arcnet |
| CP24040 | RJ45 | >155 | 10 | 1 | Secondary 8-wire Cat.5 LAN |
| CP24049 | RJ45 | >80 | 105 | 3 | Secondary 2-wire ISDN |
| CP24052 | F-type Coaxial | 100 | <20 | 10 | Cable TV, Digital Satellite |
| CP24056 | RJ31X | N/A | 270 | 3 | Secondary 4-wire Dial-up |
| CP24058 | RJ48C | >50 | 28 | 10 | T1 |
